Obsolete product, replaced by

Smoove 1 RTS II + Suporte

Ref : 1871359

  • obsoleto
Kit Smoove Origin RTS - 1810880 - 1 - Somfy
Kit Smoove Origin RTS - 1810880 - 1 - Somfy
Kit Smoove Origin RTS - 1810880 - 2 - Somfy

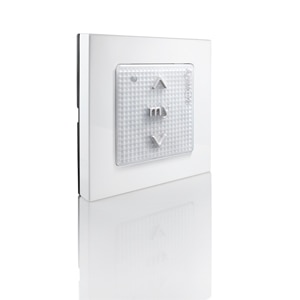

Ref : 1810880 - SMOOVE ORIGIN RTS

Kit Smoove Origin RTS

Kit Smoove Origin RTS

Application
Veneziana Exterior,Estores interiores,Portas de garagem,Ecrãs de projecção,Estores exteriores,Estore de rolo exterior,Toldos
Technology Garantia
RTS technology 5 years

Detalhes e especificações

  • Comando de parede de tecnologia tátil.
  • Funções de subir, descer, parar e posição preferida.
  • Entrega-se com suporte Smoove Puro e suporte de parede.
  • Tecnologia RTS.

Outros documentos e links

Discover

Install

Technical information

Tecnologia

Rádio frequência 433.42   MHz
Alcance na casa 20 m
Capacidade da memória 1

Eletrico

Consumo em funcionamento 0   W
Consumo en standby 0   W
Tipo de bateria CR 2032
Tensão da bateria 3   V

Standard

Índice de proteção IP 20

Dimensão

Largura 50   mm
Altura 50   mm
Espessura 10   mm
Peso 0.024   Kg

Outro

Cor / Fim Pure
Limites de uso Must be placed inside and must be used on the wall. Can be grabbed occasionally for setting and programming. Radio performances are reduced if obstacles are present and if product is placed close to metallic materials. Do not clean with abrasive products or solvents otherwise aesthetic can be degraded. (cleaning liquid, alcohol,…) To prevent traces of dirt appearing, install the control point away from the flow of air from a wall duct or a flush-mounted box (see Notem 14/015)
Informação For roller shutter, terrace awning or indoor awning installations equipped with io motors or receivers. U.V resistance: After 10 years, the product may be to 4/5 on the greyscale. The condition is: the product must not be exposed directly to the sun. Product autonomy: For information only but not guaranteed : 5 years with 4 manual orders per day in default setting and with battery included in the packaging.

partes separadas

1 Produtos
Suporte de parede Smoove x10
Réf. 9016911
